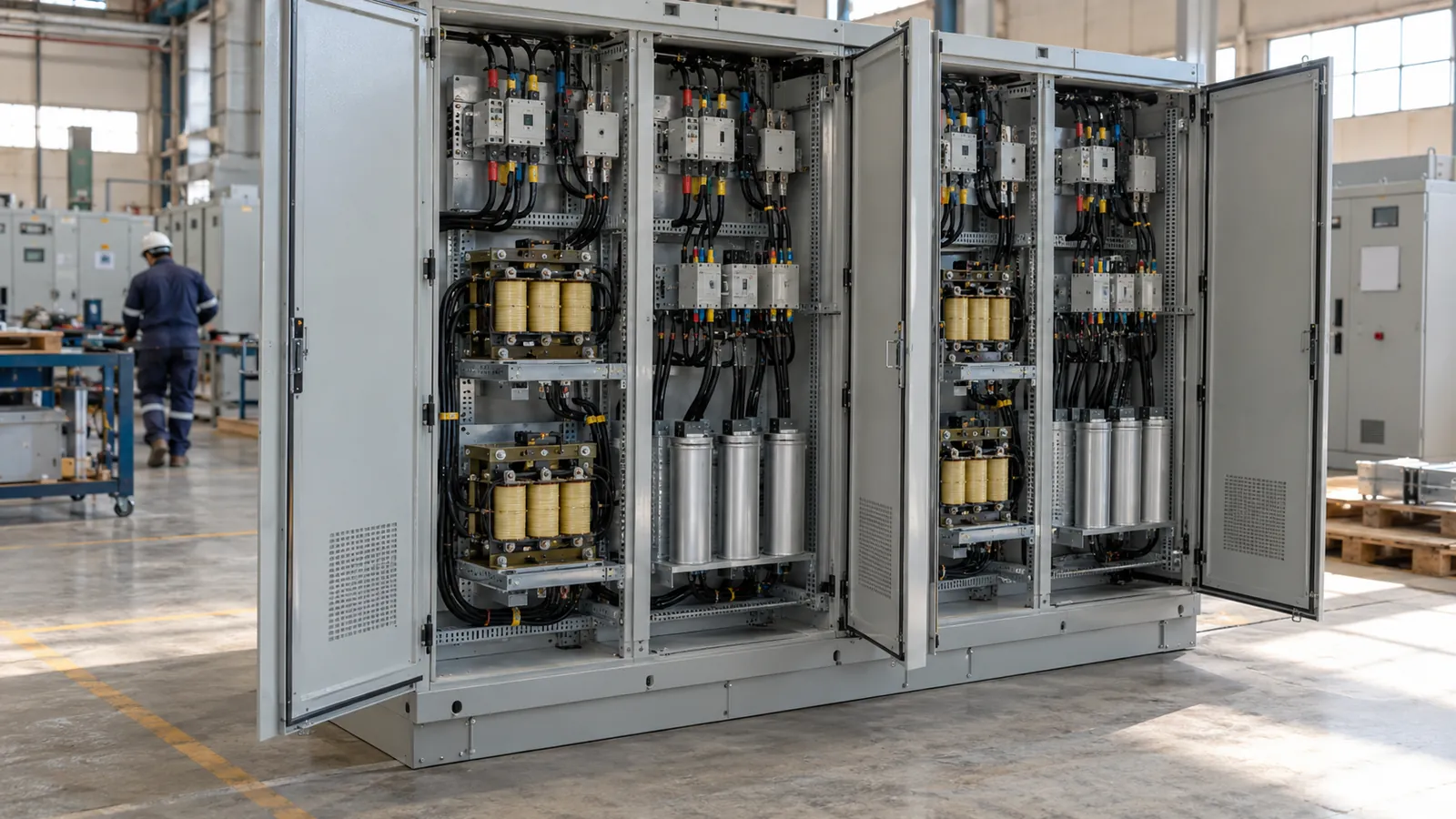

Detuned Reactor for Capacitor Banks in Saudi Arabia
Saudi Power Factor Company supplies the detuned reactor for capacitor banks across Saudi Arabia, in 7% and 14% ratings matched to each capacitor step. Placed in series with the capacitor, it moves resonance below the harmonics your drives and UPS units produce, so the capacitor is not overloaded.
What you receive: a written proposal with the reactor percentage, kVAr, voltage and price, returned the next working day after you send your step list or a drive and UPS load list. Request a quotation
What is the purpose of a detuned reactor?
A capacitor and the supply inductance form a resonant circuit. If that resonance lands near a harmonic that your drives or UPS units inject, the harmonic current is amplified and the capacitor overloads. A series reactor lowers the resonance of each step below the lowest harmonic present, so the combination behaves as an inductor at harmonic frequencies and no longer attracts them.
It protects the capacitor but does not remove harmonics from the plant. Where distortion itself must come down, see our harmonic filter panels.
What is the difference between 7% and 14% reactors?
The percentage is the reactor impedance as a share of the capacitor impedance, and it sets the tuning frequency. On a 60 Hz network, 7% tunes a step to about 227 Hz, safely below the 5th harmonic at 300 Hz. A 14% reactor tunes it to about 160 Hz, below the 3rd harmonic at 180 Hz.
Choose 7% where six-pulse drives and rectifiers dominate, and 14% where 3rd harmonic or heavy distortion is present. Measured data should confirm the choice.
Reactor supply in Saudi Arabia: what we deliver
| Item | Range / specification | Standard | Typical lead time |
|---|---|---|---|
| 7% reactor | Three-phase, matched to step kVAr and supply voltage | IEC 61558 / IEC 60076-6 | next working day from Dammam stock |
| 14% reactor | Three-phase, matched to step kVAr and supply voltage | IEC 61558 / IEC 60076-6 | next working day from Dammam stock |
| Matching capacitor | Voltage rating above the supply to suit the reactor | IEC 60831 / IEC 61921 | next working day from Dammam stock |
| Thermal protection | Thermostat contact wired to the panel trip | Manufacturer data | Supplied with reactor |
Our detuned panels are built with ABB, Schneider Electric and Siemens components and tested in our Dammam workshops.
How do I size a reactor?
Match three items to the capacitor step:
- kVAr and voltage: the reactor is rated for the step kVAr, and the capacitor is raised to 440 V or 525 V because the reactor lifts the voltage across it.
- Harmonic current: the reactor must carry fundamental plus harmonic current without saturating.
- Temperature: reactors run hot in an enclosure, so we check ventilation and fit a thermal contact.
If you are unsure, a power quality survey gives the harmonic spectrum.
How do we supply and fit reactors?
- Send data. Step sizes and the drive and UPS load list are enough.
- Select. We choose 7% or 14% and the capacitor voltage.
- Supply. Reactors arrive with thermal contacts.
- Fit. We install them in new panels, or in an existing bank during retrofit.
- Test. Currents and temperatures are checked on load.
- Record. You receive the datasheets and settings.
Who we supply
Saudi Power Factor Company has worked in Saudi Arabia since 2010 and is approved by Saudi Aramco, SABIC and the Royal Commission for Jubail and Yanbu.
We have worked on projects for Saudi Aramco, SABIC and the Royal Commission for Jubail and Yanbu, in all regions of Saudi Arabia. Tell us your plant type and city in the quotation form, and we describe the scope closest to your reactor or detuned bank job.
Questions we are asked before quoting
Who provides detuned reactors in Saudi Arabia?
Saudi Power Factor Company provides these reactors from Dammam, for our own detuned banks and for existing panels. We have worked in Saudi Arabia since 2010 and are approved by Saudi Aramco, SABIC and the Royal Commission.
What affects the cost of a reactor?
Price follows the step kVAr, reactor percentage, supply voltage, winding material, thermal protection and quantity. A 14% unit is larger than a 7% unit of the same kVAr. Send your step list and the proposal prices each reactor.
How long does reactor delivery take?
Delivery depends on the rating, the quantity and whether it is held in stock. Uncommon ratings take longer. Our typical lead time is the next working day from Dammam stock.
Why are detuned reactors required for APFC panels?
Drives, UPS units and LED lighting inject harmonic currents. Without a reactor, the capacitor and supply can resonate near those frequencies, overloading the capacitor. A series reactor moves the resonance below them.
Can I add reactors to an existing capacitor bank?
Yes, if the capacitors are replaced with a higher voltage rating, the contactors are checked and the enclosure has room and ventilation for the reactors. We survey the bank and quote the retrofit as a complete scope.
What should I send to get a quotation?
Send the kVAr of each capacitor step, the supply voltage, and a list of drives, UPS units and other electronic loads. If you have harmonic measurements, add them, and we confirm 7% or 14% in the proposal.
Looking for a detuned reactor in Saudi Arabia? Send us your capacitor step kVAr, supply voltage and drive list and receive a quotation within one working day.
Email: inquiry@saudipowerfactor.com | Request a quotation
