Rittal Enclosure in Saudi Arabia for Capacitor Panels
Saudi Power Factor Company provides the Rittal enclosure in Saudi Arabia as the housing for APFC, detuned and harmonic filter panels, with cooling sized for summer switch rooms. We are an authorised Rittal partner. Capacitors lose life quickly when the cabinet runs hot, so we choose the enclosure, the ventilation or the cooling unit together with the capacitor layout.
What you receive: a written proposal stating the enclosure size and IP rating, the cooling method, the kVAr of the bank, the lead time and the price within one working day of your load list or specification. Request a quotation
Why does a capacitor panel need cooling in Saudi Arabia?
Capacitors and detuning reactors both give off heat, and a switch room in the Eastern Province or Jeddah can sit well above the temperature the capacitor data sheet assumes. Each extra 10 °C shortens capacitor life. A sealed cabinet traps the heat, while a ventilated one lets in dust. A well-chosen Rittal enclosure with the right climate control solves both. Our page on capacitor bank overheating explains the failure pattern.

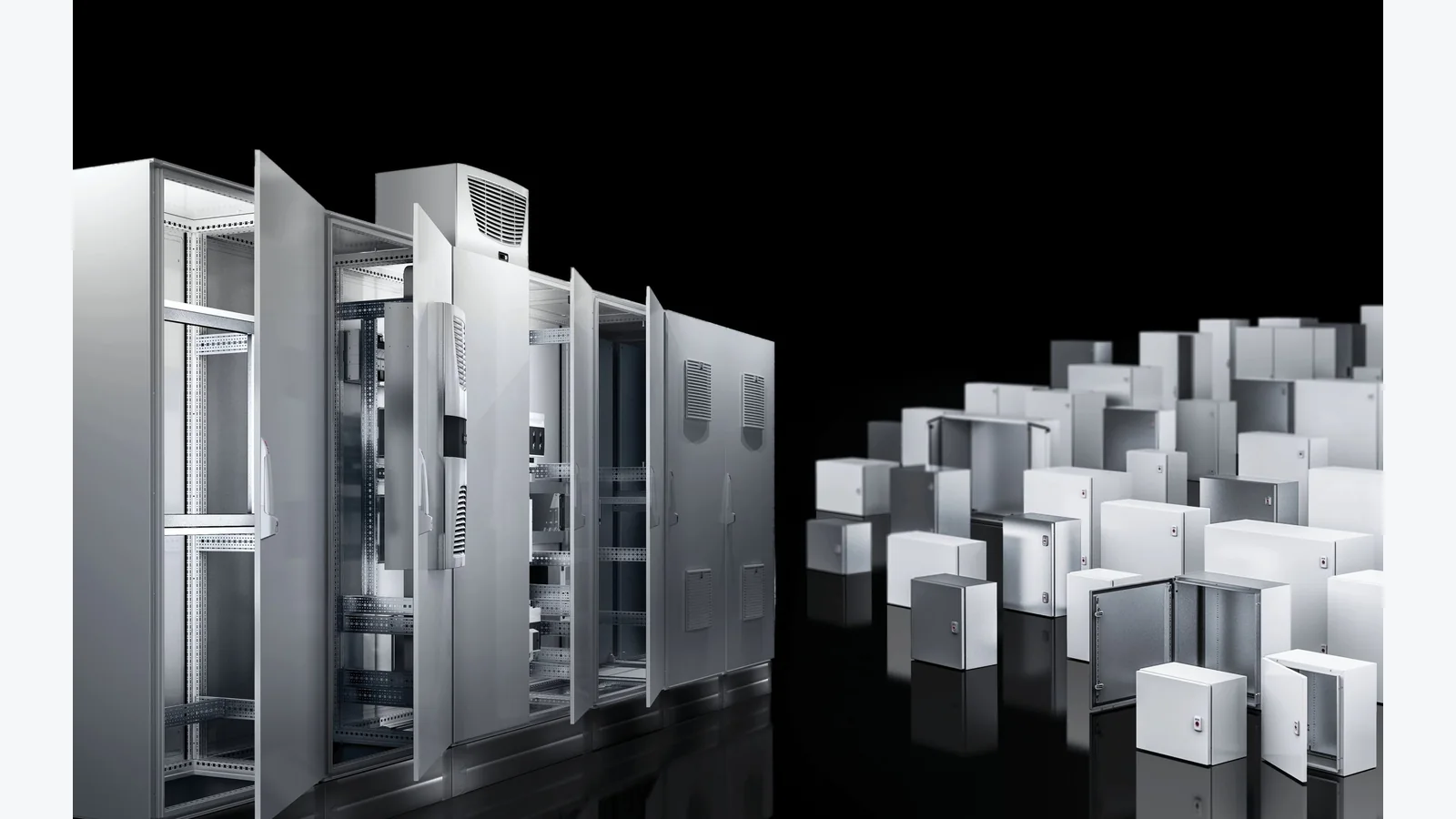

Which Rittal enclosure in Saudi Arabia suits a PFC panel?
- Enclosure systems: TS 8 and VX25 style modular enclosures for free-standing capacitor panels, with bolted frames and removable gland plates.
- Cooling: roof-mounted cooling units and panel air conditioners where the room is hot, and filter fans where it is not.
- Climate control: enclosure thermostats and hygrostats wired to a fan or cooler alarm.
- Accessories: busbar supports, mounting plates and compartment partitions for a segregated capacitor section.
What do we supply with the enclosure?
| Item | Range / specification | Standard | Typical lead time |
|---|---|---|---|
| Rittal enclosure fitted as APFC panel | 25–1,200 kVAr per panel, 380–415 V, 60 Hz | IEC 61439-1/-2 | 2–3 weeks |
| Enclosure protection | IP31–IP54 indoor, IP55 outdoor or kiosk | IEC 60529 | Included in build time |
| Cooling unit or filter fan | Sized from the heat load of capacitors and reactors | Manufacturer type-tested | Included in build time |
| Detuned bank in Rittal enclosure | 50–1,000 kVAr | IEC 61921; IEC 60076-6 | 3–4 weeks |
How do we size cooling for the heat load?
We add the dielectric losses of the capacitors, the copper and iron losses of the reactors, the contactor coil losses and the controller. That total, with the room temperature you give us, decides between natural ventilation, filter fans and a cooling unit. An enclosure price list means little until the heat load is known, so the proposal prices the cabinet and its climate control as one item.
How does a Rittal-based panel project run?
- Enquiry. You send the bill or load list and the switch room details.
- Heat study. We estimate losses and ambient temperature.
- Design. We choose enclosure size, cooling and compartments.
- Build. The Dammam workshops assemble the cabinet and wire the panel.
- Test. We run a temperature check along with the electrical tests.
- Delivery. The panel ships by road with its drawings.
- Support. Filters and fans are held with our APFC panel spares.
Rittal partner questions
Who provides a Rittal enclosure in Saudi Arabia for capacitor panels?
Saudi Power Factor Company provides Rittal enclosures fitted as APFC, detuned and harmonic filter panels from its Dammam workshops. We hold authorised Rittal partner status. We supply the enclosure only when it forms part of a panel or a retrofit that we build.
What is the cost of a Rittal panel enclosure?
Price depends on the size, the frame system, the IP rating, the door and plate options and the climate control. For a capacitor panel the cooling unit often costs as much as the empty cabinet, so the proposal shows both lines separately.
How long does an enclosure and panel take?
Lead time depends on the enclosure size, the cooling option and the kVAr of the bank. Our typical figure is 2–3 weeks for an APFC panel and 3–4 weeks for a detuned bank, and the quotation confirms the date for your cabinet.
Does Rittal make panel air conditioners?
Yes. Rittal makes cooling units and panel air conditioners for sealed cabinets. We use them where the room is above the capacitor rating and filter fans cannot lower the cabinet temperature enough.
What sizes of Rittal enclosure do capacitor panels use?
Size follows the kVAr and the number of steps. A small fixed bank fits a wall-mounted cabinet, while a large detuned bank needs a free-standing section. We state the dimensions in the general arrangement drawing before we build.
Can you rehouse an old bank in a new enclosure?
Yes. We move sound capacitors and contactors into a new enclosure with proper cooling, replace worn parts and test the result. Combine it with a detuned bank upgrade where harmonics are present.
Looking for a Rittal enclosure in Saudi Arabia for your capacitor panel? Send your load list and switch room details and receive a quotation within one working day.
Email: inquiry@saudipowerfactor.com | Request a quotation
