Power Factor Correction in Jeddah
Saudi Power Factor Company provides power factor correction in Jeddah for food, packaging, plastics, metal and port-side plants, hotels and hospitals. We are based in Dammam on the Gulf coast, so a Jeddah job is planned as a remote-quoted, freight-delivered project with a clear commissioning arrangement. You still get a sized proposal within one working day.
What you receive: a written Jeddah proposal with kVAr, coastal enclosure specification, freight plan and price within one working day of receiving your bill. Request a quotation
Why does a Jeddah panel need a different specification?

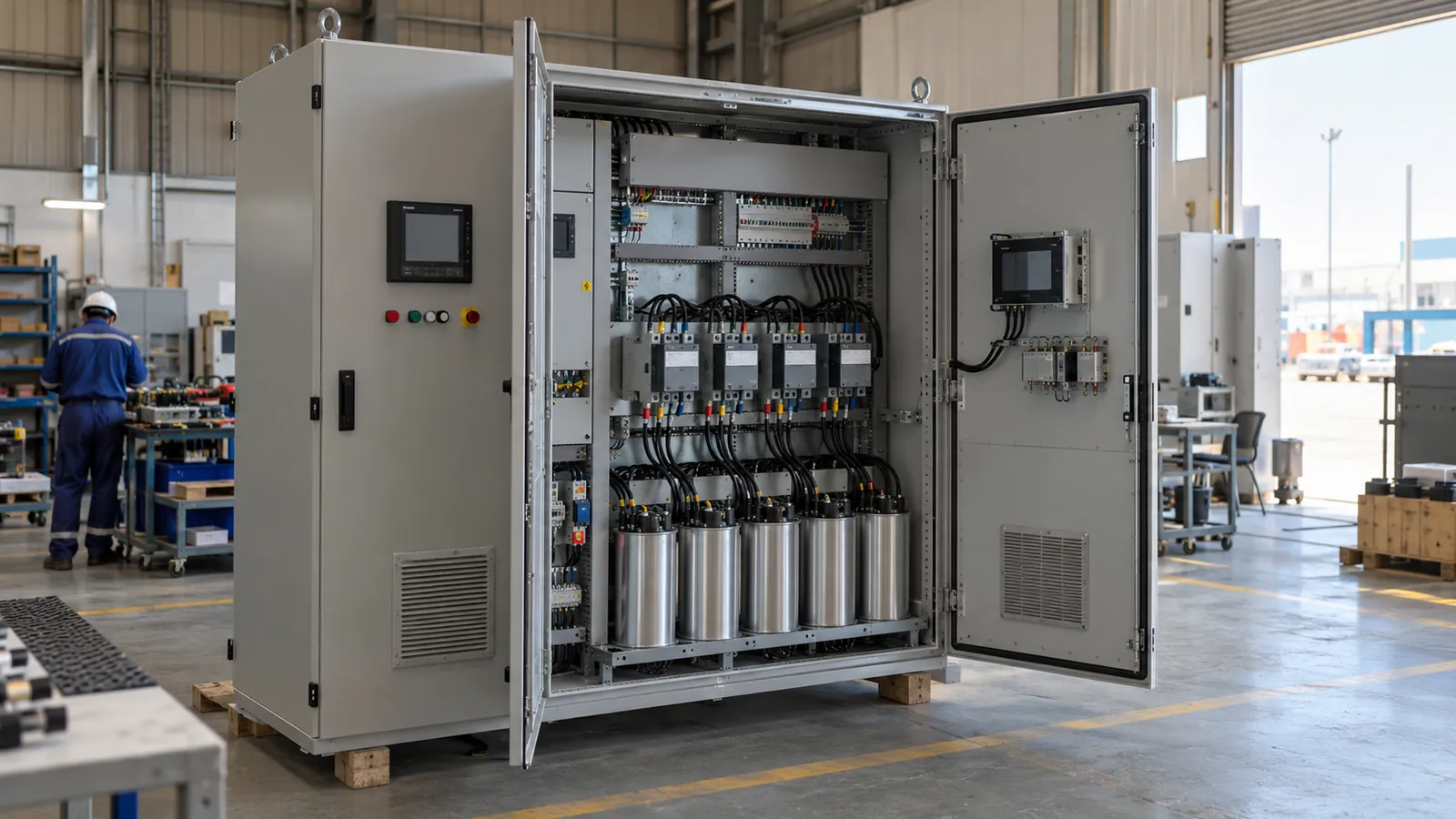

Jeddah's humid, salt-laden air attacks busbars, lugs and thin-gauge steel faster than dry inland air does. We ask for the plant location and the electrical room conditions, then specify coatings, gland plates, space heaters and filters to suit. The kVAr sum is the same as anywhere else; the enclosure and ventilation are what change. Enclosures run from IP31 to IP54 indoors and IP55 for outdoor or kiosk use.
Is a power factor of 0.7 good?
It is low for an industrial supply. At 0.70 the plant carries about 43% more current than at 1.00 for the same kW, which loads cables and the transformer and usually draws a charge where the tariff applies one. Our APFC panels typically bring such loads to a target near 0.95 or above, and tariff rules are set by SEC. Under the Saudi Electricity Company tariff: 0.90 is the minimum above 1 MVA contract load; we design to 0.95.
How is power quality measured in a Jeddah plant?
A logger clamps onto the incoming phases and records voltage, current, power factor and harmonic distortion every few minutes for a week or more. We read the trace for peaks, resonance risks and unbalance, then size the equipment. Our survey instruments come from Elcontrol Energy Net of Bologna, our Italian PFC technology partner. See the power quality survey and Elcontrol partner pages.
Power factor correction in Jeddah: what we supply and deliver
| Service | Typical Jeddah use | How it reaches you |
|---|---|---|
| APFC panel | Plants with changing motor and chiller loads | Built in Dammam, freighted by road |
| Detuned panel | Plants with drives, UPS and LED loads | Built in Dammam, freighted by road |
| Power quality logger | Unexplained penalty or tripping | Shipped to site, fitted by your electrician or our engineer |
| Spare steps and parts | Replacing worn capacitors | Sent by courier or freight; see cold storage loads |
Standards are IEC 61439-1/-2 for panels and IEC 61921 for capacitor banks. We build with ABB, Schneider Electric and Siemens components.
Which Jeddah zones can we supply?
We can supply plants in the Jeddah 1st and 2nd Industrial Cities, around Jeddah Islamic Port, and commercial buildings across the city. Typical buyers are beverage and food packers, plastics and steel fabricators, cold stores, hotels and hospitals. Dammam to Jeddah is well over 1,000 km by road, so freight time is shown on the quotation. Panels ship by road in 2–3 days.
Saudi Power Factor Company has operated since 2010 and is approved by Saudi Aramco and SABIC. We are available for projects across Saudi Arabia, including Jeddah. Our full range is on the Saudi Arabia hub.
Our address (Dammam)
Saudi Power Factor Company King Abdulaziz Street, Dammam, Eastern Province, Saudi Arabia Email: inquiry@saudipowerfactor.com
[Map: embed the Google Map for the King Abdulaziz Street, Dammam address]
How does a Jeddah order proceed?
- You send the bill, the transformer rating and a photo of the electrical room.
- We fix kVAr, steps and the coastal enclosure specification.
- You approve drawings and the freight plan.
- The panel is built and tested in Dammam.
- It is freighted to Jeddah and commissioned as agreed at quotation.
- Drawings and the test record are handed over.
Jeddah power factor questions
Who provides power factor correction in Jeddah?
Saudi Power Factor Company provides power factor correction in Jeddah from Dammam, supplying coastal-specified panels, surveys and commissioning support. We hold ISO 9001, 14001 and 45001 certification, and approvals from Saudi Aramco and SABIC.
What affects the cost of a Jeddah APFC panel?
Cost follows the kVAr, step count, harmonic protection, the coastal enclosure specification and freight from Dammam. Commissioning travel is shown separately. A bill or logger report lets us price against your real demand.
How long does a Jeddah project take?
Lead time is 2–3 weeks for an APFC panel and 3–4 weeks for a detuned bank, plus freight of 2–3 days by road. Drawing approval and your installation date set the rest. We confirm the schedule with the quotation so your electricians can book the shutdown.
Can a Jeddah plant order without an engineer visit first?
Yes. Send your bill, a photo of the electrical room and the transformer rating, and we return a sized proposal. Where more data is needed we ship a logger and walk your electrician through fitting it.
Is there a power factor correction company near me in Jeddah?
Our office is in Dammam, not Jeddah. We support Jeddah clients through remote design, freight and commissioning arrangements agreed at quotation, so you know who attends and when before you order.
Need power factor correction in Jeddah? Send the bill and a photo of the electrical room, and the Jeddah quotation arrives within one working day.
Email: inquiry@saudipowerfactor.com | Request a quotation
